PLS SLDG Laser Receiver

Designed to detect the laser from green beam PLS line laser models with pulse function.

The PLS SLDG is a specialised laser receiver designed for use with green beam PLS cross line laser models outdoors where the laser line cannot be seen.
The PLS 180G and PLS 6G models all feature a "pulsing" outdoor laser mode.
When the lasers are used in this mode, the SLDG receiver will detect the pulsing laser line and provide the user with grade elevation information on the LCD display.

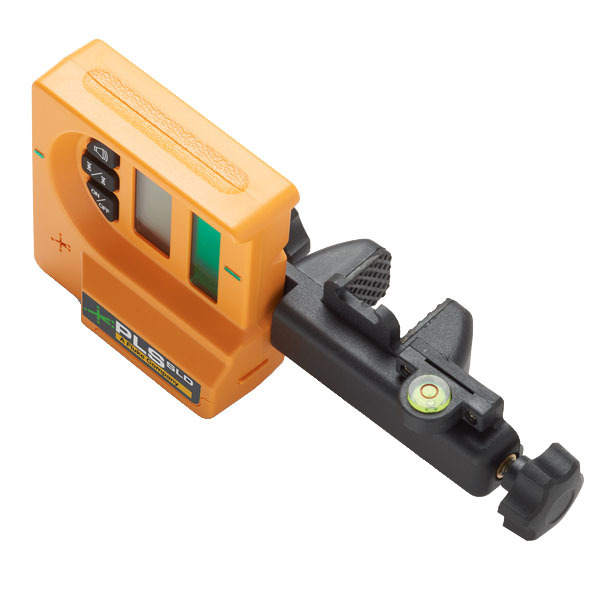

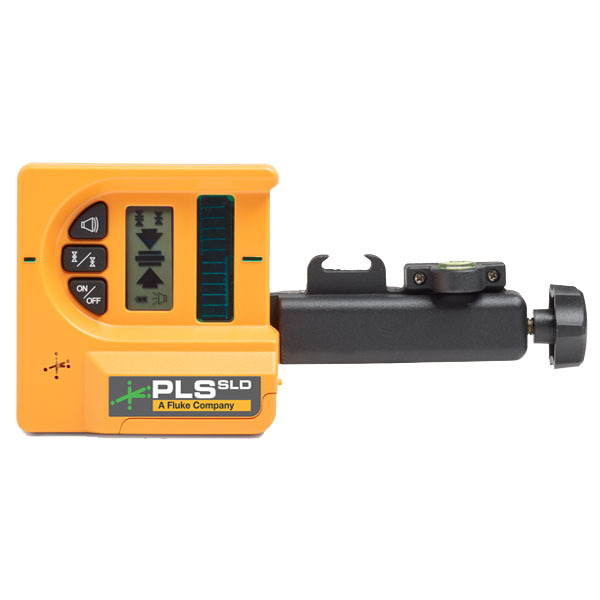

With 2 mounting screw points on the reverse of the receiver, the clamp can be attached to detect either a horizontal beam or a vertical beam.
The PLS SLDG receiver comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Operating Range: 5m to 80m radius (dependant on laser line model)
  • Vertical Detection Height: 39mm

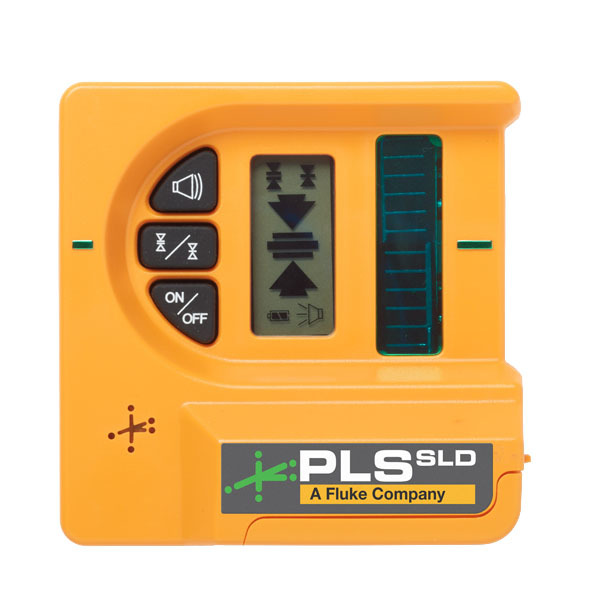

  • Display: LCD with above, on grade and below indication
  • Accuracy: Fine (+/- 0.75mm), Medium (+/-1.75mm)
  • Speaker Volume: Off, loud
  • Battery Type: 1x 9V
  • Battery Life: 30 hours
  • Weight: 215gm incl. batteries and clamp

Packages

Product Details Price
PLS SLDG Laser Receiver

SLDG receiver, clamp, 1x 9V alkaline battery, user manual.

  • RECEIVER-PLS-SLDG
    $250.00 + GST
