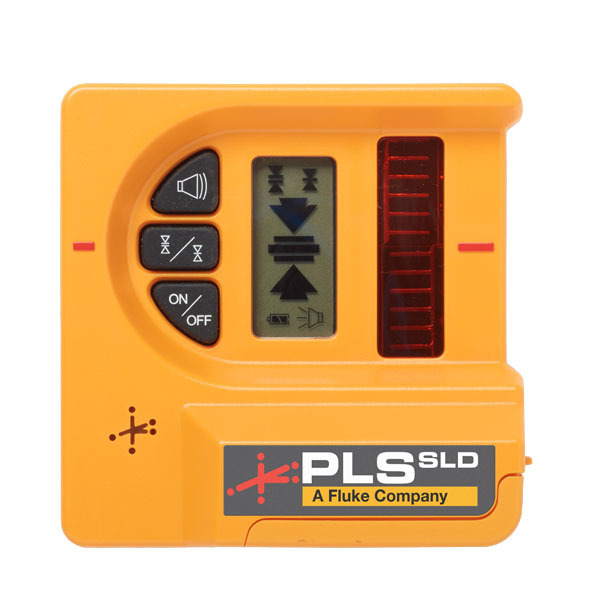

PLS SLD Laser Receiver

Designed to detect the laser from red beam PLS line laser models with pulse function.

The PLS SLD is a unique laser receiver designed for use with red PLS cross line laser models outdoors where the laser line cannot be seen. The PLS 180R, PLS 6R, PLS 480 and PLS 100 models all feature a "pulsing" outdoor laser mode.
When the lasers are used in this mode, the SLD receiver will detect the pulsing laser line and provide the user with grade elevation information on the LCD display.

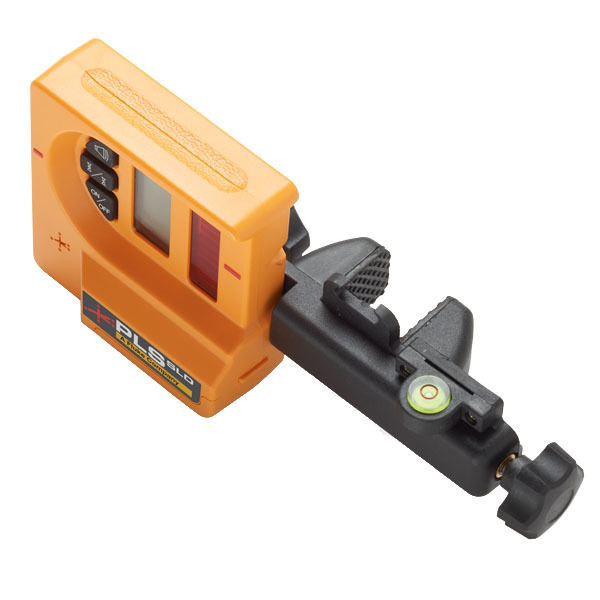

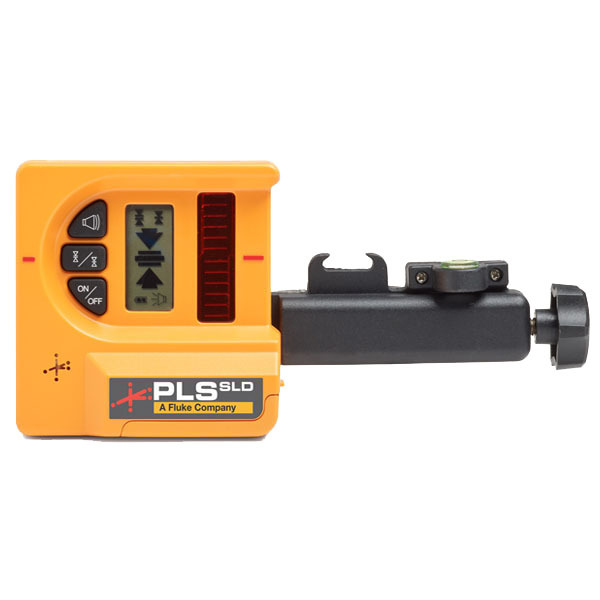

With 2 mounting screw points on the reverse of the receiver, the clamp can be attached to detect either a horizontal beam or a vertical beam.
The PLS SLD receiver comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Operating Range: 5m to 80m radius (dependant on laser line model)
  • Vertical Detection Height: 39mm
  • Display: LCD with above, on grade and below indication
  • Accuracy: Fine (+/- 0.75mm), Medium (+/-1.75mm)
  • Speaker Volume: Off, loud
  • Battery Type: 1x 9V
  • Battery Life: 30 hours
  • Weight: 215gm incl. batteries and clamp

Packages

Product Details Price
PLS SLD Laser Receiver

SLD receiver, clamp, 1x 9V alkaline battery, user manual.

  • RECEIVER-PLS-SLD
    $250.00 + GST
