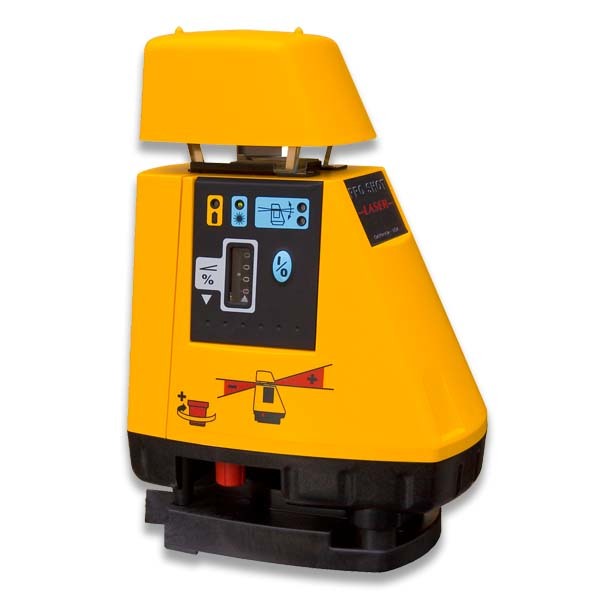

Pro Shot AS2 Single Grade Laser

The world's most affordable high quality automatic self leveling single grade laser, made in the USA by Pro Shot.

The Pro Shot AS2 is an extremely popular fully automatic, dial-in self leveling single grade laser, made in the USA.

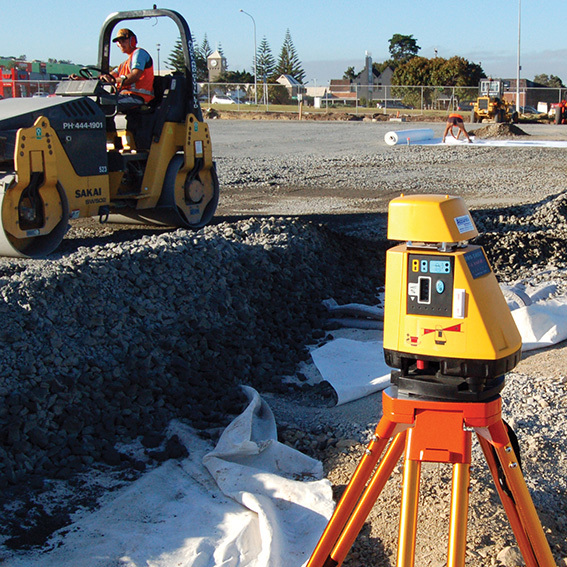

Simple to operate, the AS2 grade laser is a rugged level designed for civil construction, drainage, earthmoving contractors, sloping concrete pads, farm sheds, machine control applications etc.

Beware: Many types of lasers are referred to as “grade lasers”. These include automatic builder’s lasers with a manual override or slope matching lasers using the up/down arrows for grade and or dial in grade entry. Most of these lasers DO NOT feature self-leveling in grade mode. If it does not feature self-leveling in grade, the laser does not maintain it's accuracy during extended periods of operation.

The AS2 is a true automatic dial-in grade laser with self-leveling in grade mode.
When dialling a single grade into the AS2 e.g. 12.87%, it will self-level at that slope whilst keeping the cross axis automatically level at the same time. With a single grade operating range of up to 25% (1 in 4), and 0.01% grade increments, the AS2 provides precise fast on grade leveling.
The Pro Shot AS2 series laser levels are used by many of New Zealand's construction and contracting firms, and they have one of the best standard warranties available in the business, period.

The standard package includes the durable and simple to use R9 laser receiver.
If you are searching for a digital receiver, choose the package with HL450 'mm' laser receiver, with digitally displays the height elevation on the LCD. The operator can see exactly how many millimeters they are above or below grade.

The package that includes the HL700 features a wider deadband of 127mm, with anti strobe mode, more accuracy settings and longer detection range.

The 6 Year Manufacturer's warranty covers any defects in materials or workmanship whilst in addition the AS2 also comes standard with a 6 Year Knockdown warranty which covers the internal leveling mechanism and internal optics against damage from any cause.

Specifications

  • Accuracy: +/- 2mm at 30m (14 arc seconds)
  • Self Leveling: Yes
  • Grade Range: Single grade 0-25%
  • Grade Increments: 0.01%
  • Operating Diameter: 610m
  • Rotation Speed: 600RPM
  • Battery Type: 4x C Alkaline (optional rechargeable available)
  • Battery Life: 115 hours
  • Weight: 2.01kg incl. batteries
  • Weather Protection: IP56

Packages

Product Details Price
Pro Shot AS2 Single Grade Laser

AS2 laser, R9 receiver with clamp, alkaline batteries, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-PS-AS2
    $2,998.00 + GST
Pro Shot AS2 Single Grade Laser with HL450 Receiver

AS2 laser, Spectra Precision HL450 'mm' digital receiver with clamp, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-PS-AS2-HL450
    $3,250.00 + GST
Pro Shot AS2 Single Grade Laser with HL700 Receiver

AS2 laser, Spectra Precision HL700 'mm' digital receiver with clamp, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

  • LASER-PS-AS2-HL700
    $3,399.00 + GST
CST Flat Standard Aluminium Tripod

CST Heavy duty aluminium tripod with flat head for AS2. $55 saving on normal trade price when purchased with the AS2!

  • LASER-PS-AS2-TRIPODFLAT
    $125.00 + GST
CST Heavy Duty 3.8m Fiberglass Elevating Tripod

CST Heavy duty 3.8m fiberglass height adjustable Elevating Tripod for AS2. $130 saving when purchased with the AS2!

  • LASER-PS-AS2-TRIPODELV3.8
    $395.00 + GST
5meter 5/10mm Aluminium Leveling Staff

5meter 5/10mm Aluminium Leveling Staff with Bag & bubble.

  • LASER-PS-AS2-5MSTAFF
    $100.00 + GST
