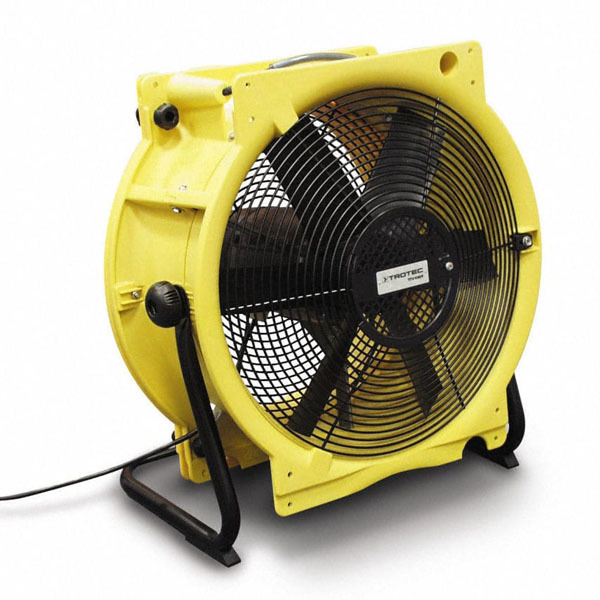

Trotec TTV4500 Fan

The TTV4500 is a robust powerful professional axial fan/ventilator with 3 stage settings of airspeed of upto 4500 m3/h.

The TTV4500 is a high performance axial ventilator with 3 powerful fan speeds of 2000, 3000 and 4500 m3/hour.
Constructed from durable UV stable plastic, the TTV4500 is lightweight and portable making it useful for air circulation in large rooms and commercial areas.

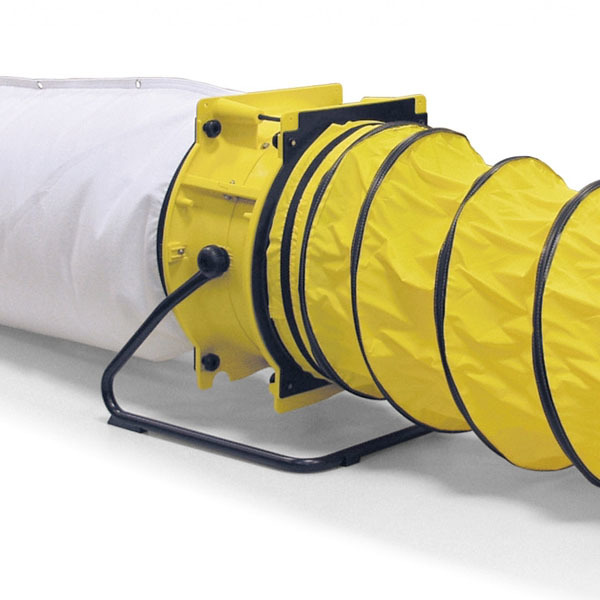

Optional 457mm flexible 7.6m hoses can be attached to the TTV4500 to distribute the air into confined spaces or to further away locations (adapter required).

A washable 3m dust bag can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.

The Trotec TTV4500 comes standard with a 1 Year Manufacturer's warranty covering any defects in materials or workmanship.

Specifications

  • Airflow Rate: 4500 m3/hour maximum
  • Stages: 3 stages/speeds
  • Air Pressure: 80 Pa
  • Hose/Ducting Size: 457mm diameter, 7.6m length
  • Dust Bag Size: 3m length
  • Power Consumption: 0.23kW max
  • Noise Level: 53 dB (A)
  • Weight: 12.5 kgs
  • Dimensions: 560mm x 480mm x 380mm
  • Warranty: 1 Year

Packages

Product Details Price
Trotec TTV4500 Fan

TTV4500, 230V NZ/AUS power lead, user manual

SPECIAL ORDER ITEM - CALL 0800 500 380 FOR LATEST PRICING
Trotec TTV4500 Hose Adapter

Adapter for the TTV4500 series fans required for connecting the 7.6m hose ducting

  • FAN-TROTEC-TTV4500-ADAPTER
    $150.00 + GST
Trotec SPT457 Ventilation Ducting 7.6m

Ventilation/temperature grade flexible ducting with reinforced steel spirals for added strength with a maximum temperature of up to 100°C.

  • FAN-TROTEC-TTV4500-HOSE
    $193.00 + GST
Trotec Hose Lashing Strap

Adjustable connecting strap with an automatic stop mechanism at the strap buckle used to connect the ducting to the TTV ventilators.

  • FAN-TROTEC-TTV4500-HOSESTRAP
    $7.50 + GST
Trotec 457mm Hose Joiner

Aluminium hose joiner 457mm used for connecting multiple lengths of SPT ducting to the TTV4500.

  • FAN-TROTEC-TTV4500-HOSEJOINER
    $49.00 + GST
Trotec TTV4500 Dust Bag

3m Dust Bag for TTV4500

  • FAN-TROTEC-TTV4500-DUSTBAG
    $119.00 + GST
